1.10. Decision Trees

Decision Trees (DTs) are a non-parametric supervised learning method used for classification and regression. The goal is to create a model that predicts the value of a target variable by learning simple decision rules inferred from the data features. A tree can be seen as a piecewise constant approximation.

For instance, in the example below, decision trees learn from data to approximate a sine curve with a set of if-then-else decision rules. The deeper the tree, the more complex the decision rules and the fitter the model.

Some advantages of decision trees are:

• Simple to understand and to interpret. Trees can be visualized.

• Requires little data preparation. Other techniques often require data normalization, dummy variables need to be created and blank values to be removed. Some tree and algorithm combinations support missing values.

• The cost of using the tree (i.e., predicting data) is logarithmic in the number of data points used to train the tree.

• Able to handle both numerical and categorical data. However, the scikit-learn implementation does not support categorical variables for now. Other techniques are usually specialized in analyzing datasets that have only one type of variable. See algorithms for more information.

• Able to handle multi-output problems.

• Uses a white box model. If a given situation is observable in a model, the explanation for the condition is easily explained by boolean logic. By contrast, in a black box model (e.g., in an artificial neural network), results may be more difficult to interpret.

• Possible to validate a model using statistical tests. That makes it possible to account for the reliability of the model.

• Performs well even if its assumptions are somewhat violated by the true model from which the data were generated.

The disadvantages of decision trees include:

• Decision-tree learners can create over-complex trees that do not generalize the data well. This is called overfitting. Mechanisms such as pruning, setting the minimum number of samples required at a leaf node or setting the maximum depth of the tree are necessary to avoid this problem.

• Decision trees can be unstable because small variations in the data might result in a completely different tree being generated. This problem is mitigated by using decision trees within an ensemble.

• Predictions of decision trees are neither smooth nor continuous, but piecewise constant approximations as seen in the above figure. Therefore, they are not good at extrapolation.

• The problem of learning an optimal decision tree is known to be NP-complete under several aspects of optimality and even for simple concepts. Consequently, practical decision-tree learning algorithms are based on heuristic algorithms such as the greedy algorithm where locally optimal decisions are made at each node. Such algorithms cannot guarantee to return the globally optimal decision tree. This can be mitigated by training multiple trees in an ensemble learner, where the features and samples are randomly sampled with replacement.

• There are concepts that are hard to learn because decision trees do not express them easily, such as XOR, parity or multiplexer problems.

• Decision tree learners create biased trees if some classes dominate. It is therefore recommended to balance the dataset prior to fitting with the decision tree.

1.10.1. Classification

DecisionTreeClassifier is a class capable of performing multi-class classification on a dataset.

As with other classifiers, DecisionTreeClassifier takes as input two arrays: an array X, sparse or dense, of shape (n_samples, n_features) holding the training samples, and an array Y of integer values, shape (n_samples,), holding the class labels for the training samples:

>>> from sklearn import tree
>>> X = [[0, 0], [1, 1]]
>>> Y = [0, 1]
>>> clf = tree.DecisionTreeClassifier()
>>> clf = clf.fit(X, Y)

After being fitted, the model can then be used to predict the class of samples:

>>> clf.predict([[2., 2.]])
array([1])

In case that there are multiple classes with the same and highest probability, the classifier will predict the class with the lowest index amongst those classes.

As an alternative to outputting a specific class, the probability of each class can be predicted, which is the fraction of training samples of the class in a leaf:

>>> clf.predict_proba([[2., 2.]])
array([[0., 1.]])

DecisionTreeClassifier is capable of both binary (where the labels are [-1, 1]) classification and multiclass (where the labels are [0, …, K-1]) classification.

Using the Iris dataset, we can construct a tree as follows:

>>> from sklearn.datasets import load_iris
>>> from sklearn import tree
>>> iris = load_iris()
>>> X, y = iris.data, iris.target
>>> clf = tree.DecisionTreeClassifier()
>>> clf = clf.fit(X, y)

Once trained, you can plot the tree with the plot_tree function:

>>> tree.plot_tree(clf)
[...]

Alternative ways to export trees

We can also export the tree in Graphviz format using the export_graphviz exporter. If you use the conda package manager, the graphviz binaries and the python package can be installed with conda install python-graphviz.

Alternatively binaries for graphviz can be downloaded from the graphviz project homepage, and the Python wrapper installed from pypi with pip install graphviz. On Mac, we can also install via Homebrew with brew install Graphviz.

Below is an example graphviz export of the above tree trained on the entire iris dataset; the results are saved in an output file iris.pdf:

>>> import graphviz
>>> dot_data = tree.export_graphviz(clf, out_file=None)
>>> graph = graphviz.Source(dot_data)
>>> graph.render("iris")

The export_graphviz exporter also supports a variety of aesthetic options, including coloring nodes by their class (or value for regression) and using explicit variable and class names if desired. Jupyter notebooks also render these plots inline automatically:

>>> dot_data = tree.export_graphviz(clf, out_file=None,
...                      feature_names=iris.feature_names,
...                      class_names=iris.target_names,
...                      filled=True, rounded=True,
...                      special_characters=True)
>>> graph = graphviz.Source(dot_data)
>>> graph

The complete code snippet using the [Iris dataset](https://en.wikipedia.org/wiki/Iris_flower_data_set) is as follows:

from sklearn.datasets import load_iris
from sklearn import tree
import graphviz

iris = load_iris()
x, y = iris.data, iris.target
classifier = tree.DecisionTreeClassifier()
classifier = classifier.fit(x, y)

dot_data = tree.export_graphviz(
   classifier,
   out_file=None,
   feature_names=iris.feature_names,
   class_names=iris.target_names,
   filled=True,
   rounded=True,
   special_characters=True
)
graph = graphviz.Source(dot_data)
graph.render("iris")

Alternatively, the tree can also be exported in textual format with the function export_text. This method doesn’t require the installation of external libraries and is more compact:

>>> from sklearn.datasets import load_iris
>>> from sklearn.tree import DecisionTreeClassifier
>>> from sklearn.tree import export_text
>>> iris = load_iris()
>>> decision_tree = DecisionTreeClassifier(random_state=0, max_depth=2)
>>> decision_tree = decision_tree.fit(iris.data, iris.target)
>>> r = export_text(decision_tree, feature_names=iris['feature_names'])
>>> print(r)
|--- petal width (cm) <= 0.80
|   |--- class: 0
|--- petal width (cm) >  0.80
|   |--- petal width (cm) <= 1.75
|   |   |--- class: 1
|   |--- petal width (cm) >  1.75
|   |   |--- class: 2

Examples

• Plot the decision surface of decision trees trained on the iris dataset

• Understanding the decision tree structure

1.10.2. Regression

Decision trees can also be applied to regression problems, using the DecisionTreeRegressor class.

As in the classification setting, the fit method will take as argument arrays X and y, only that in this case y is expected to have floating point values instead of integer values:

>>> from sklearn import tree
>>> X = [[0, 0], [2, 2]]
>>> y = [0.5, 2.5]
>>> clf = tree.DecisionTreeRegressor()
>>> clf = clf.fit(X, y)
>>> clf.predict([[1, 1]])
array([0.5])

Examples

• Decision Tree Regression

1.10.3. Multi-output problems

A multi-output problem is a supervised learning problem with several outputs to predict, that is when Y is a 2d array of shape (n_samples, n_outputs).

When there is no correlation between the outputs, a very simple way to solve this kind of problem is to build n independent models, i.e. one for each output, and then to use those models to independently predict each one of the n outputs. However, because it is likely that the output values related to the same input are themselves correlated, an often better way is to build a single model capable of predicting simultaneously all n outputs. First, it requires lower training time since only a single estimator is built. Second, the generalization accuracy of the resulting estimator may often be increased.

With regard to decision trees, this strategy can readily be used to support multi-output problems. This requires the following changes:

• Store n output values in leaves, instead of 1;

• Use splitting criteria that compute the average reduction across all n outputs.

This module offers support for multi-output problems by implementing this strategy in both DecisionTreeClassifier and DecisionTreeRegressor. If a decision tree is fit on an output array Y of shape (n_samples, n_outputs) then the resulting estimator will:

• Output n_output values upon predict;

• Output a list of n_output arrays of class probabilities upon predict_proba.

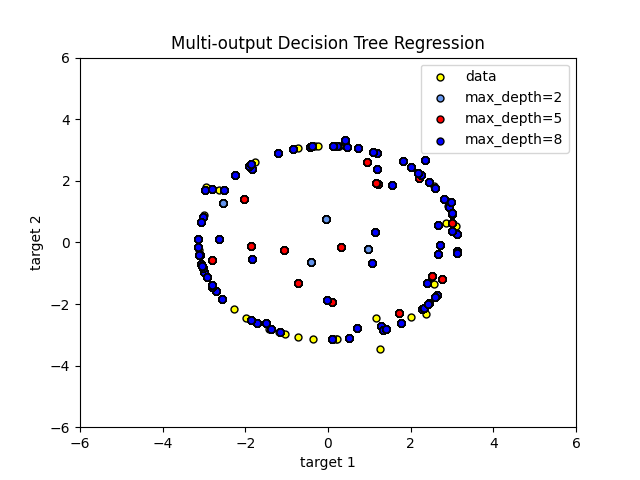

The use of multi-output trees for regression is demonstrated in Multi-output Decision Tree Regression. In this example, the input X is a single real value and the outputs Y are the sine and cosine of X.

The use of multi-output trees for classification is demonstrated in Face completion with a multi-output estimators. In this example, the inputs X are the pixels of the upper half of faces and the outputs Y are the pixels of the lower half of those faces.

Examples

• Multi-output Decision Tree Regression

• Face completion with a multi-output estimators

References

• M. Dumont et al, Fast multi-class image annotation with random subwindows and multiple output randomized trees, International Conference on Computer Vision Theory and Applications 2009

1.10.4. Complexity

In general, the run time cost to construct a balanced binary tree is \(O(n_{samples}n_{features}\log(n_{samples}))\) and query time \(O(\log(n_{samples}))\). Although the tree construction algorithm attempts to generate balanced trees, they will not always be balanced. Assuming that the subtrees remain approximately balanced, the cost at each node consists of searching through \(O(n_{features})\) to find the feature that offers the largest reduction in the impurity criterion, e.g. log loss (which is equivalent to an information gain). This has a cost of \(O(n_{features}n_{samples}\log(n_{samples}))\) at each node, leading to a total cost over the entire trees (by summing the cost at each node) of \(O(n_{features}n_{samples}^{2}\log(n_{samples}))\).

1.10.5. Tips on practical use

• Decision trees tend to overfit on data with a large number of features. Getting the right ratio of samples to number of features is important, since a tree with few samples in high dimensional space is very likely to overfit.

• Consider performing dimensionality reduction (PCA, ICA, or Feature selection) beforehand to give your tree a better chance of finding features that are discriminative.

• Understanding the decision tree structure will help in gaining more insights about how the decision tree makes predictions, which is important for understanding the important features in the data.

• Visualize your tree as you are training by using the export function. Use max_depth=3 as an initial tree depth to get a feel for how the tree is fitting to your data, and then increase the depth.

• Remember that the number of samples required to populate the tree doubles for each additional level the tree grows to. Use max_depth to control the size of the tree to prevent overfitting.

• Use min_samples_split or min_samples_leaf to ensure that multiple samples inform every decision in the tree, by controlling which splits will be considered. A very small number will usually mean the tree will overfit, whereas a large number will prevent the tree from learning the data. Try min_samples_leaf=5 as an initial value. If the sample size varies greatly, a float number can be used as percentage in these two parameters. While min_samples_split can create arbitrarily small leaves, min_samples_leaf guarantees that each leaf has a minimum size, avoiding low-variance, over-fit leaf nodes in regression problems. For classification with few classes, min_samples_leaf=1 is often the best choice.

  Note that min_samples_split considers samples directly and independent of sample_weight, if provided (e.g. a node with m weighted samples is still treated as having exactly m samples). Consider min_weight_fraction_leaf or min_impurity_decrease if accounting for sample weights is required at splits.

• Balance your dataset before training to prevent the tree from being biased toward the classes that are dominant. Class balancing can be done by sampling an equal number of samples from each class, or preferably by normalizing the sum of the sample weights (sample_weight) for each class to the same value. Also note that weight-based pre-pruning criteria, such as min_weight_fraction_leaf, will then be less biased toward dominant classes than criteria that are not aware of the sample weights, like min_samples_leaf.

• If the samples are weighted, it will be easier to optimize the tree structure using weight-based pre-pruning criterion such as min_weight_fraction_leaf, which ensure that leaf nodes contain at least a fraction of the overall sum of the sample weights.

• All decision trees use np.float32 arrays internally. If training data is not in this format, a copy of the dataset will be made.

• If the input matrix X is very sparse, it is recommended to convert to sparse csc_matrix before calling fit and sparse csr_matrix before calling predict. Training time can be orders of magnitude faster for a sparse matrix input compared to a dense matrix when features have zero values in most of the samples.

1.10.6. Tree algorithms: ID3, C4.5, C5.0 and CART

What are all the various decision tree algorithms and how do they differ from each other? Which one is implemented in scikit-learn?

Various decision tree algorithms

ID3 (Iterative Dichotomiser 3) was developed in 1986 by Ross Quinlan. The algorithm creates a multiway tree, finding for each node (i.e. in a greedy manner) the categorical feature that will yield the largest information gain for categorical targets. Trees are grown to their maximum size and then a pruning step is usually applied to improve the ability of the tree to generalize to unseen data.

ID3 algorithm learns decision trees by constructing them topdown, beginning with the question “which attribute should be tested at the root of the tree?” To answer this question, each instance attribute is evaluated using a statistical test to determine how well it alone classifies the training examples. The best attribute is selected and used as the test at the root node of the tree. A descendant of the root node is then created for each possible value of this attribute, and the training examples are sorted to the appropriate descendant node (i.e., down the branch corresponding to the example’s value for this attribute). The entire process is then repeated using the training examples associated with each descendant node to select the best attribute to test at that point in the tree. This forms a greedy search for an acceptable decision tree, in which the algorithm never backtracks to reconsider earlier choices. A simplified version of the algorithm, specialized to learning boolean-valued functions (i.e., concept learning), is described below

• “examples”: the training examples

• “targe_tattribute”: the attribute whose value is to be predicted by the tree

• “attributes”: a list of other attributes that may be tested by the learned decision tree

Note

ID3(examples, targe_tattribute, attributes) \(\rightarrow\) a decision tree that correctly classifies the given “examples”

• Create a Root node for the tree

• If all “examples” are positive, return the single-node tree Root, with label = +

• If all “examples” are negative, return the single-node tree Root, with label = -

• If “attributes” is empty, return the single-node tree Root, with label = most common value of “target_attribute” in “examples”

• Otherwise begin

  1. \(\mathit{A}\) \(\leftarrow\) attribute from “attributes” that best* classifies “examples”

  2. The decision attribute for Root \(\leftarrow\) \(\mathit{A}\)

  3. For each possible value, \(\mathit{v_i}\), of \(\mathit{A}\),

     1. Add a new tree branch below Root, corresponding to the test \(\mathit{A}\) = \(v_i\)

     2. Let \(examples_{\mathit{v_i}}\) be the subset of “examples” that have value \(\mathit{v_i}\) for \(\mathit{A}\)

     3. If \(examples_{\mathit{v_i}}\) is empty

     • then below this new branch add a leaf node with label = most common value of “targe_tattribute” attribute in “examples”

     • else below this new branch add the subtree ID3(\(examples_{\mathit{v_i}}\), “targe_tattribute”, “attributes” - \({\mathit{A}}\))

• End

• Return Root

The best attribute is the one with the highest information gain

We will define a statistical property, called Information Gain, that measures how well a given attribute separates the training examples according to their target classification. ID3 uses this information gain measure to select among the candidate attributes at each step while growing the tree

In information theory, Entropy characterizes the (im)purity of an arbitrary collection of examples. Given a collection \(\mathit{S}\), containing positive and negative examples of some target concept, the entropy of S relative to this boolean classification is

\[Entropy(\mathit{S}) \equiv \mathit{-p_\oplus \log_2 p_\oplus - p_\ominus \log_2 p_\ominus}\]

where \(\mathit{p_\oplus}\), is the proportion of positive examples in \(\mathit{S}\) and \(\mathit{p_\ominus}\) the proportion of negative examples in \(\mathit{S}\)

If the target attribute can take on \(\mathit{c}\) different values, then the entropy of \(\mathit{S}\) relative to this c-wise classification is defined as

\[Entropy(\mathit{S}) \equiv \mathit{\sum_{i = 1}^{c} -p_i \log_2 p_i}\]

where \(\mathit{p_i}\) is the proportion of \(\mathit{S}\) belonging to class \(\mathit{i}\).

Note

The logarithm is still base 2 because entropy is a measure of the expected encoding length measured in bits. If the target attribute can take on \(\mathit{c}\) possible values, the entropy can be as large as \(\mathit{\log_2 c}\). INFORMATION GAIN MEASURES THE EXPECTED REDUCTION IN ENTROPY

• ID3’s hypothesis space of all decision trees is a complete space of finite discrete-valued functions, relative to the available attributes.

• ID3 maintains only a single current hypothesis

Note

Inductive bias is the set of assumptions that, together with the training data, deductively justify the classifications assigned by the learner to future instances

Approximate inductive bias of ID3: Shorter trees are preferred over larger trees. Trees that place high information gain attributes close to the root are preferred over those that do not.

Note

Given a hypothesis space \(\mathit{H}\), a hypothesis \(\mathit{h \in H}\) is said to overfit the training data if there exists some alternative hypothesis \(\mathit{h' \in H}\), such that \(\mathit{h}\) has smaller error than \(\mathit{h'}\) over the training examples, but \(\mathit{h'}\) has a smaller error than \(\mathit{h}\) over the entire distribution of instances.

Overfitting is a significant practical difficulty for decision tree learning and many other learning methods. There are several approaches to avoiding overfitting in decision tree learning. These can be grouped into two classes

1. approaches that stop growing the tree earlier, before it reaches the point where it perfectly classifies the training data

2. approaches that allow the tree to overfit the data, and then post-prune the tree

Although the first of these approaches might seem.more direct, the second approach of post-pruning overfit trees has been found to be more successful in practice. This is due to the difficulty in the first approach of estimating precisely when to stop growing the tree. What criterion is to be used to determine the correct final tree size then?

Approaches include:

1. Use a separate set of examples, distinct from the training examples, to evaluate the utility of post-pruning nodes from the tree (training and validation set approach).

2. Use all the available data for training, but apply a statistical test to estimate whether expanding (or pruning) a particular node is likely to produce an improvement beyond the training set.

3. Use an explicit measure of the complexity for encoding the training examples and the decision tree, halting growth of the tree when this encoding size is minimized. This approach is based on a heuristic called the Minimum Description Length principle

C4.5 is the successor to ID3 and removed the restriction that features must be categorical by dynamically defining a discrete attribute (based on numerical variables) that partitions the continuous attribute value into a discrete set of intervals. C4.5 converts the trained trees (i.e. the output of the ID3 algorithm) into sets of if-then rules. The accuracy of each rule is then evaluated to determine the order in which they should be applied. Pruning is done by removing a rule’s precondition if the accuracy of the rule improves without it.

C5.0 is Quinlan’s latest version release under a proprietary license. It uses less memory and builds smaller rulesets than C4.5 while being more accurate.

CART (Classification and Regression Trees) is very similar to C4.5, but it differs in that it supports numerical target variables (regression) and does not compute rule sets. CART constructs binary trees using the feature and threshold that yield the largest information gain at each node.

scikit-learn uses an optimized version of the CART algorithm; however, the scikit-learn implementation does not support categorical variables for now.

1.10.7. Mathematical formulation

Given training vectors \(x_i \in R^n\), i=1,…, l and a label vector \(y \in R^l\), a decision tree recursively partitions the feature space such that the samples with the same labels or similar target values are grouped together.

Let the data at node \(m\) be represented by \(Q_m\) with \(n_m\) samples. For each candidate split \(\theta = (j, t_m)\) consisting of a feature \(j\) and threshold \(t_m\), partition the data into \(Q_m^{left}(\theta)\) and \(Q_m^{right}(\theta)\) subsets

\[ \begin{align}\begin{aligned}Q_m^{left}(\theta) = \{(x, y) | x_j \leq t_m\}\\Q_m^{right}(\theta) = Q_m \setminus Q_m^{left}(\theta)\end{aligned}\end{align} \]

The quality of a candidate split of node \(m\) is then computed using an impurity function or loss function \(H()\), the choice of which depends on the task being solved (classification or regression)

\[G(Q_m, \theta) = \frac{n_m^{left}}{n_m} H(Q_m^{left}(\theta)) + \frac{n_m^{right}}{n_m} H(Q_m^{right}(\theta))\]

Select the parameters that minimises the impurity

\[\theta^* = \operatorname{argmin}_\theta G(Q_m, \theta)\]

Recurse for subsets \(Q_m^{left}(\theta^*)\) and \(Q_m^{right}(\theta^*)\) until the maximum allowable depth is reached, \(n_m < \min_{samples}\) or \(n_m = 1\).

1.10.7.1. Classification criteria

If a target is a classification outcome taking on values 0,1,…,K-1, for node \(m\), let

\[p_{mk} = \frac{1}{n_m} \sum_{y \in Q_m} I(y = k)\]

be the proportion of class k observations in node \(m\). If \(m\) is a terminal node, predict_proba for this region is set to \(p_{mk}\). Common measures of impurity are the following.

Gini:

\[H(Q_m) = \sum_k p_{mk} (1 - p_{mk})\]

Log Loss or Entropy:

\[H(Q_m) = - \sum_k p_{mk} \log(p_{mk})\]

Shannon entropy

The entropy criterion computes the Shannon entropy of the possible classes. It takes the class frequencies of the training data points that reached a given leaf \(m\) as their probability. Using the Shannon entropy as tree node splitting criterion is equivalent to minimizing the log loss (also known as cross-entropy and multinomial deviance) between the true labels \(y_i\) and the probabilistic predictions \(T_k(x_i)\) of the tree model \(T\) for class \(k\).

To see this, first recall that the log loss of a tree model \(T\) computed on a dataset \(D\) is defined as follows:

\[\mathrm{LL}(D, T) = -\frac{1}{n} \sum_{(x_i, y_i) \in D} \sum_k I(y_i = k) \log(T_k(x_i))\]

where \(D\) is a training dataset of \(n\) pairs \((x_i, y_i)\).

In a classification tree, the predicted class probabilities within leaf nodes are constant, that is: for all \((x_i, y_i) \in Q_m\), one has: \(T_k(x_i) = p_{mk}\) for each class \(k\).

This property makes it possible to rewrite \(\mathrm{LL}(D, T)\) as the sum of the Shannon entropies computed for each leaf of \(T\) weighted by the number of training data points that reached each leaf:

\[\mathrm{LL}(D, T) = \sum_{m \in T} \frac{n_m}{n} H(Q_m)\]

1.10.7.2. Regression criteria

If the target is a continuous value, then for node \(m\), common criteria to minimize as for determining locations for future splits are Mean Squared Error (MSE or L2 error), Poisson deviance as well as Mean Absolute Error (MAE or L1 error). MSE and Poisson deviance both set the predicted value of terminal nodes to the learned mean value \(\bar{y}_m\) of the node whereas the MAE sets the predicted value of terminal nodes to the median \(median(y)_m\).

Mean Squared Error:

\[ \begin{align}\begin{aligned}\bar{y}_m = \frac{1}{n_m} \sum_{y \in Q_m} y\\H(Q_m) = \frac{1}{n_m} \sum_{y \in Q_m} (y - \bar{y}_m)^2\end{aligned}\end{align} \]

Mean Poisson deviance:

\[H(Q_m) = \frac{2}{n_m} \sum_{y \in Q_m} (y \log\frac{y}{\bar{y}_m} - y + \bar{y}_m)\]

Setting criterion="poisson" might be a good choice if your target is a count or a frequency (count per some unit). In any case, \(y >= 0\) is a necessary condition to use this criterion. Note that it fits much slower than the MSE criterion. For performance reasons the actual implementation minimizes the half mean poisson deviance, i.e. the mean poisson deviance divided by 2.

Mean Absolute Error:

\[ \begin{align}\begin{aligned}median(y)_m = \underset{y \in Q_m}{\mathrm{median}}(y)\\H(Q_m) = \frac{1}{n_m} \sum_{y \in Q_m} |y - median(y)_m|\end{aligned}\end{align} \]

Note that it fits much slower than the MSE criterion.

1.10.8. Missing Values Support

DecisionTreeClassifier, DecisionTreeRegressor have built-in support for missing values using splitter='best', where the splits are determined in a greedy fashion. ExtraTreeClassifier, and ExtraTreeRegressor have built-in support for missing values for splitter='random', where the splits are determined randomly. For more details on how the splitter differs on non-missing values, see the Forest section.

The criterion supported when there are missing-values are 'gini', 'entropy’, or 'log_loss', for classification or 'squared_error', 'friedman_mse', or 'poisson' for regression.

First we will describe how DecisionTreeClassifier, DecisionTreeRegressor handle missing-values in the data.

For each potential threshold on the non-missing data, the splitter will evaluate the split with all the missing values going to the left node or the right node.

Decisions are made as follows:

• By default when predicting, the samples with missing values are classified with the class used in the split found during training:

  >>> from sklearn.tree import DecisionTreeClassifier
  >>> import numpy as np

  >>> X = np.array([0, 1, 6, np.nan]).reshape(-1, 1)
  >>> y = [0, 0, 1, 1]

  >>> tree = DecisionTreeClassifier(random_state=0).fit(X, y)
  >>> tree.predict(X)
  array([0, 0, 1, 1])


• If the criterion evaluation is the same for both nodes, then the tie for missing value at predict time is broken by going to the right node. The splitter also checks the split where all the missing values go to one child and non-missing values go to the other:

  >>> from sklearn.tree import DecisionTreeClassifier
  >>> import numpy as np

  >>> X = np.array([np.nan, -1, np.nan, 1]).reshape(-1, 1)
  >>> y = [0, 0, 1, 1]

  >>> tree = DecisionTreeClassifier(random_state=0).fit(X, y)

  >>> X_test = np.array([np.nan]).reshape(-1, 1)
  >>> tree.predict(X_test)
  array([1])


• If no missing values are seen during training for a given feature, then during prediction missing values are mapped to the child with the most samples:

  >>> from sklearn.tree import DecisionTreeClassifier
  >>> import numpy as np

  >>> X = np.array([0, 1, 2, 3]).reshape(-1, 1)
  >>> y = [0, 1, 1, 1]

  >>> tree = DecisionTreeClassifier(random_state=0).fit(X, y)

  >>> X_test = np.array([np.nan]).reshape(-1, 1)
  >>> tree.predict(X_test)
  array([1])


ExtraTreeClassifier, and ExtraTreeRegressor handle missing values in a slightly different way. When splitting a node, a random threshold will be chosen to split the non-missing values on. Then the non-missing values will be sent to the left and right child based on the randomly selected threshold, while the missing values will also be randomly sent to the left or right child. This is repeated for every feature considered at each split. The best split among these is chosen.

During prediction, the treatment of missing-values is the same as that of the decision tree:

• By default when predicting, the samples with missing values are classified with the class used in the split found during training.

• If no missing values are seen during training for a given feature, then during prediction missing values are mapped to the child with the most samples.

1.10.9. Minimal Cost-Complexity Pruning

Minimal cost-complexity pruning is an algorithm used to prune a tree to avoid over-fitting, described in Chapter 3 of [BRE]. This algorithm is parameterized by \(\alpha\ge0\) known as the complexity parameter. The complexity parameter is used to define the cost-complexity measure, \(R_\alpha(T)\) of a given tree \(T\):

\[R_\alpha(T) = R(T) + \alpha|\widetilde{T}|\]

where \(|\widetilde{T}|\) is the number of terminal nodes in \(T\) and \(R(T)\) is traditionally defined as the total misclassification rate of the terminal nodes. Alternatively, scikit-learn uses the total sample weighted impurity of the terminal nodes for \(R(T)\). As shown above, the impurity of a node depends on the criterion. Minimal cost-complexity pruning finds the subtree of \(T\) that minimizes \(R_\alpha(T)\).

The cost complexity measure of a single node is \(R_\alpha(t)=R(t)+\alpha\). The branch, \(T_t\), is defined to be a tree where node \(t\) is its root. In general, the impurity of a node is greater than the sum of impurities of its terminal nodes, \(R(T_t)<R(t)\). However, the cost complexity measure of a node, \(t\), and its branch, \(T_t\), can be equal depending on \(\alpha\). We define the effective \(\alpha\) of a node to be the value where they are equal, \(R_\alpha(T_t)=R_\alpha(t)\) or \(\alpha_{eff}(t)=\frac{R(t)-R(T_t)}{|T|-1}\). A non-terminal node with the smallest value of \(\alpha_{eff}\) is the weakest link and will be pruned. This process stops when the pruned tree’s minimal \(\alpha_{eff}\) is greater than the ccp_alpha parameter.

Examples

• Post pruning decision trees with cost complexity pruning

References

[BRE]

L. Breiman, J. Friedman, R. Olshen, and C. Stone. Classification and Regression Trees. Wadsworth, Belmont, CA, 1984.

• https://en.wikipedia.org/wiki/Decision_tree_learning

• https://en.wikipedia.org/wiki/Predictive_analytics

• J.R. Quinlan. C4. 5: programs for machine learning. Morgan Kaufmann, 1993.

• T. Hastie, R. Tibshirani and J. Friedman. Elements of Statistical Learning, Springer, 2009.
